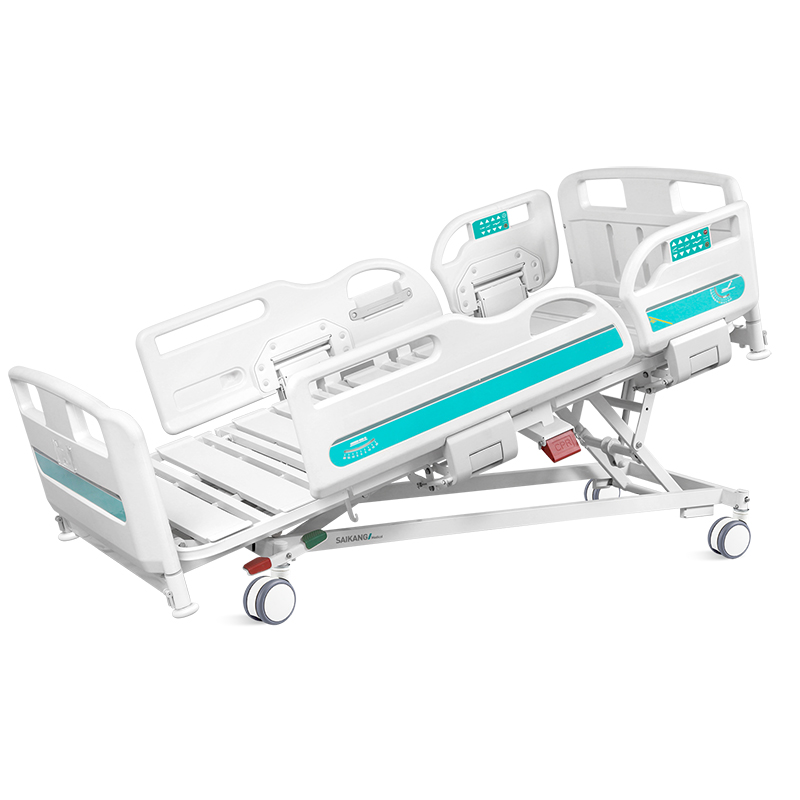

Y8y Electric hospital bed

DOWNLOAD PRODUCT DATA SHEET

CONTACT FOR PRODUCT

Features
Highlights
Quality control
Warranty

Important quality control
* Double auto-regression function
* Super-low bed position 350mm
* PP bed platform, Removable & washable
* PP safety guardrail with two steps unlocking system,patent design

Optional features(extra charge)
* Weighing System
* Bed extension 200mm
* Back up battery
* Nurse Control Panel
* Emergency Stop Button
* Cardiac Chair Position
* Directional wheels function
* 5th and 6th Extra Side Rail For Full Protection
* Monkey Pole
* Balkan Frame
* Linen Holder

Technical parameters

External size (LxWxH)	2030x1050x350-800 mm
Mattress platform	1925x880 mm
Safe working load	250 kg
Back-rest adjustment	0-75° (±10°)
Knee-rest adjustment	0-35° (±10°)
Reverse Trendelenburg	0-12°
Trendelenburg	0-12°
Angle indicator	0-90°
Bed extension	200mm
Auto-regression	100+60mm
Position line	30°
Voltage and frequency	100-240 V · 50/60 Hz

Technical configuration

Linear motor	4pcs
5'' double side castors, central locking system	4pcs
ABS oasis side rail extra height	1set
ABS oasis bed ends with safe lock	1set
PP bed platform, removable & washable	9pcs
Plastic socket inside PP guardrail for phone or glasses	2pcs
Patent angle indicator for back-rest and trendelenburg position	4pcs
100mm wall bumper wheel	4pcs
Central locking pedal	2pcs
ABS mattress stopper	2pcs
Hand controller	1pc
I V pole	1set
I V pole prevision	4pcs
Drainage hook	2pcs

Great Multi-Care Respects easy patient mobilisation:One-button for patient mobilisation position -back plate raised, double hole design on back part guardrail, which supports patient self standing.

	Safety Guardrail The designed guardrail fully considered to provide enough space and hand grasp for patient to get out of bed, and provide extremely high safety.Two steps unlocking system,to prevent patients from accidentally lowering the guardrail (patented design).

Double Regression Function Auto-Regression 10+6 cm.When repositioning the backrest and thigh rest, the Y8Y8C makes the back plate retreat 10cm and the thigh plate retreats 6cm so to minimises the pressure and shear forces in the patient‘s pelvic region. This results in a significant reduction in the development of pressure ulcers.

	Electric Motor Linear motor, with UL/ROHS/EN standard. Noise under 50 dB, with lifetime 20,000 times movement.

Safety IEC60601 Safty Standard. One-button emergency stop switch can quickly stop all going movement.

	CPR CPR emergency reset handle to immediately flatten the bed back part; located on both sides of the bed.Electric CPR button is setted inside control panel,one button to make the back plate flat.

Wheels Castors with TPR tire, no worn-out after running 30KM, united forming without bolts. Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500time.

	Brake Three position braking systerm,transporting can maintain a straight line.

Joint-Free Technology Removable plastic covers formed from 9 removable blow moulded lamella to minimise the slots where unwanted infections may hide.

	Angle Indicator Patent angle indicator,clearly show back-rest and tredelenbug position.

Head & Foot Board Patented design Detachable head & foot board, using the eccentric locking structure, one step quick removable.

	Bed Extension Extended bed platform up to 20CM, comfortable for the tallest of patients (option)

Mattress Mattress Holder.

	Wall Bumper Wheel Horizontal corner bumpers at the outermost periphery of the bed to protect the bed and wall.

IV Pole Full stainless steel IV pole, bearing 15 kg.

	Drainage Hooks Mobile plastic drainage hooks.

MEDICAL

EQUIPMENT AND FURNITURE

Since 2002

	WHY CHOOSE
	SAIKANG MEDICAL

+400 employees and +30000 m² of production facilities		16 product categories and 562 series products
	+1000 organizations in +149 countries attended

	OUR GOAL
	SATISFIED USERS

	CONSTANT
	INNOVATION


Design	Research	Manufacturing	Maintenance	Service

	SAFETY
	PACKING


Packing design	Drop test	Loading

We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.

	PRESENT IN THE MOST IMPORTANT
	INTERNATIONAL FAIRS

CMEF	German Medica	Africa Health	FIME
China	Germany	South Africa	USA
Pharmedi	TIHE	North Africa Health	Meditech
Vietnam	Uzbekistan	Egypt	Colombia
Hospital Expo	Arab Health	Medic West Africa	ExpoMed
Indonesia	United Arab Emirates	Nigeria	Mexico
Medical Fair Asia	Medical Expo	Medic East Africa	Hospitalar
Singapore	Morocco	Kenya	Brazil

	WE EXPORT HEALTH
	WORLDWIDE

Warranty

* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.

* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.

FAQ

What quality requirements does your company meet?

* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.

* We also meet the 93/42/EEC and IEC60601 safety standards.

* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.

What warranty do your products have?

* We provide a standard 1 year warranty, optional to be increased.

* 1% free parts of the total quantity will be provided together with goods.

* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.

What is your delivery time?

* Our standard delivery time is 28 days.

What payment options do you offer?

* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.

Do you offer OEM service?

* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.

Do you have different motor options?

* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.

Is the color on headboard/footboard and ABS side rail optional?

* Yes, we can provide the color according to customers' requirements, based on wholesale purchases.

Can I see your products personally?

* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).

* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
